Series 18 Heavy Duty Stage Curtain Track

Series 18 is our own heavy duty stage curtain tracking system.

Series 18 Stage Curtains Track Runner
Series 18 Stage Curtain Track Runner

This stage tracking system can be used in many different configurations for many applications, including:

  • stage curtain tracks
  • cyclorama tracks
  • studio perimeter tracks
  • very large drop window curtain tracks

Rear fold running gear is also available for cinema masking and scenic backdrops.

Series 18 stage track is available in standard lengths of 6m. Standard bends are available or non-standard bends can be supplied in any nominated radius above 600mm. Continuous long radius bends can be supplied to suit curved prosceniums or cycloramas.



Series 18 curtain tracking system can be adapted to suit many requirements with standard options. A switch (point) unit, allows stage curtains to cross between tracks on twin track arrangements, or can divert stage curtains from a perimeter track to central room divider track. A drop out section allow a section of track to be lowered so curtains can be safely loaded or unloaded at floor level. Depending upon the application and requirement Series 18 track can be motorised, cord drawn or hand drawn. Cording systems are available for multiple curved arrangements.

Stage Curtain Track Mounting

The rigidity and strength of this track allows it to be supported at 2.5m to 3m centres. Series 18 profile allows for pickup points on three sides. Many mounting accessories are available allowing wall fixing, suspended fixing, soffit mounting and batten mounting. Additionally, many commercially available strut fittings are compatible.

Series 18 Stage Curtains Track Mounting
Series 18 Stage Curtain Track Mounting



Series 18 Stage Curtains Track Technical Drawing
Series 18 Stage Curtain Track Technical Drawing



Series 18 Medium Duty Compact Stage Curtain Track

The Series 18 medium duty compact curtain track is now available.

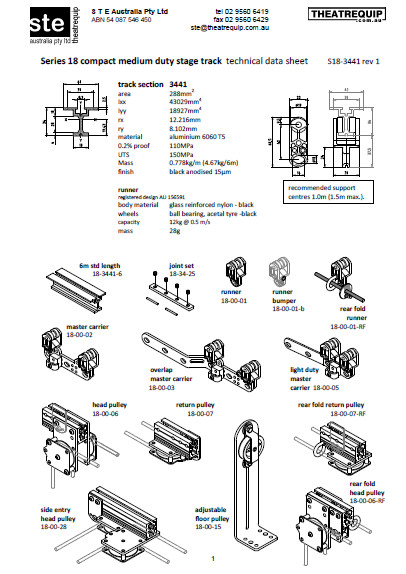

Series 18 Stage Curtains Track - Medium Duty Compact
Series 18 Stage Curtain Track
- Medium Duty Compact
Series 18 Stage Curtains Track - Medium Duty Compact
Series 18 Stage Curtain Track
- Medium Duty Compact



Motorised Stage Curtain Track

Series 18 draw winch is available in floor mount or track mount versions. The winch utilises a traction drive system with fibre rope draw lines, resulting in a system which is much quieter and more reliable than traditional wire rope helical drum systems.

Series 18 Stage Curtains Track Draw Winch
Series 18 Stage Curtain Track Draw Winch
Series 18 Stage Curtains Track Winch
Series 18 Stage Curtains Track Winch



Standard single and three phase control options are available. Purpose built control options are also possible
